Vertical Application Guide for Crystal Oscillator Sourcing: Matching Industry-Specific Demands with Precision Timing Solutions

Critical Insight: The global timing device market is projected to exceed $8 billion by 2027, driven by 5G/6G infrastructure, automotive electrification, and IoT proliferation. Choosing the wrong crystal oscillator supplier can lead to signal degradation, system failures, or costly redesigns. This vertical application guide helps industrial buyers navigate the selection process for crystal oscillators—from Clock oscillator and TCXO to OCXO and Differential oscillator—by addressing sector-specific requirements, evaluating supplier capabilities, and presenting a proven sourcing partner.

1. Industry-Specific Demands: What Each Application Requires from a Crystal Oscillator

Not all Quartz crystal oscillators are created equal. Different industries impose unique constraints on frequency stability, phase noise, temperature range, size, and power consumption. Procurement professionals must first map their application's critical parameters:

• Telecommunications / Base Stations
  Core needs: Ultra-low phase noise, high stability (±0.1ppb or better), wide operating temperature (-40°C to +85°C), and long lifespan (>15 years). OCXO oscillators and High stability oscillators with oven control are mandatory for 5G clock synchronization.
• Automotive Electronics (ADAS, Infotainment, V2X)
  Core needs: AEC-Q200 qualification (when specified), wide temperature range (-40°C to +125°C), resistance to shock/vibration, and low jitter. Automotive crystal oscillators in compact SMD oscillator packages (4-pin, 8-pin) are typical, often using TCXO oscillator technology for GNSS timing.
• Internet of Things (IoT) / Wearables / Smart Home
  Core needs: Ultra-low power consumption (< 1 μA in standby), miniature footprint (< 2.0×1.6mm), and cost efficiency. Low power consumption oscillators in SMD oscillator or Programmable oscillator formats dominate, with VCTCXO used for frequency adjustment.
• Industrial Automation / Instrumentation
  Core needs: High reliability over 20 years, wide voltage tolerance, and moderate stability (±25 ppm). Precision oscillators and VCXO (voltage-controlled) enable fine-tuning for PLCs and test equipment.
• Military & Aerospace / Radar & Microwave
  Core needs: Exceptional phase noise, frequency agility, and ruggedized packaging. Differential output oscillators (LVDS, LVPECL) and custom OCXO oscillators are often required.

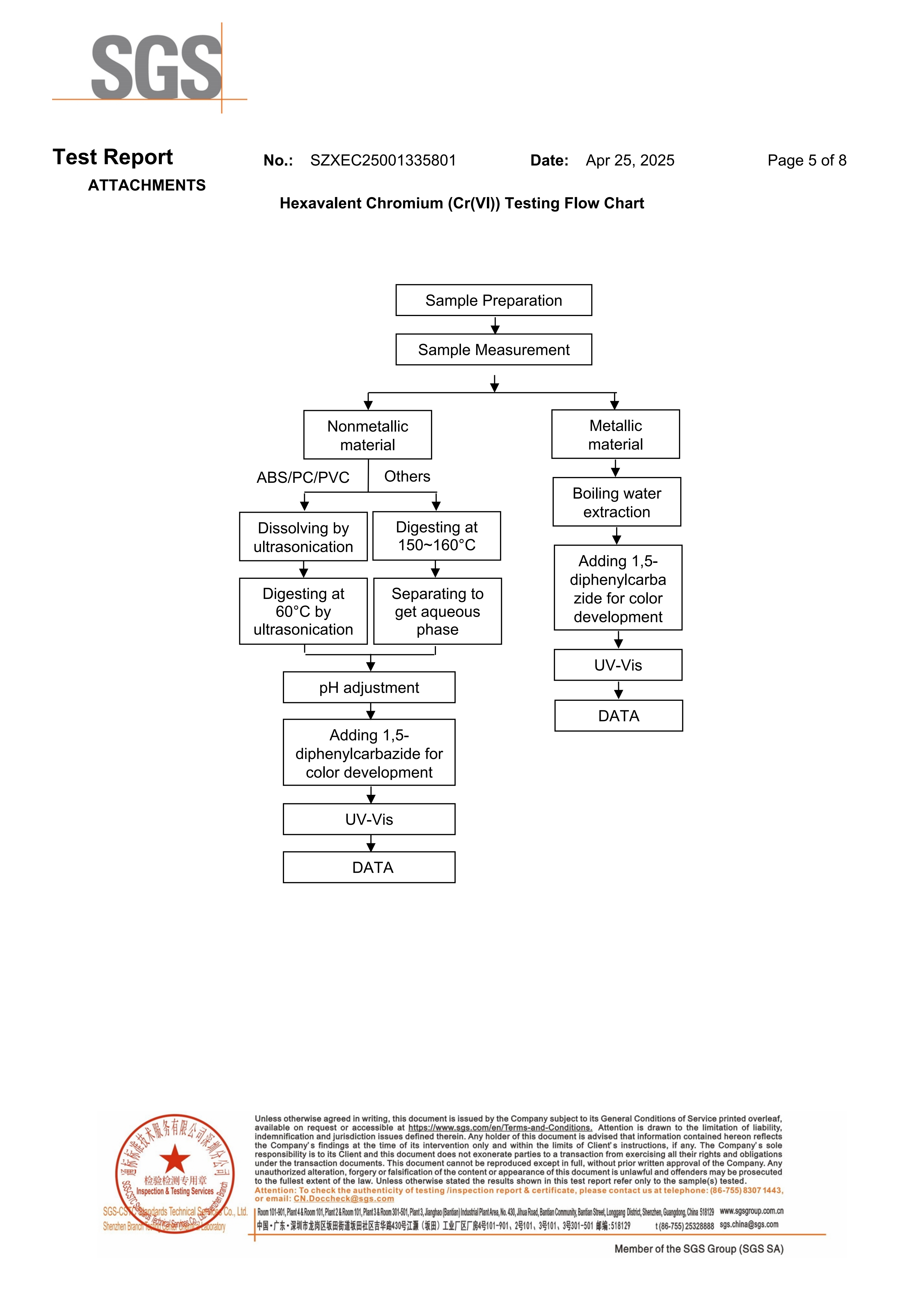

Fronter Electronics’ RoHS compliance guarantees environmental safety across all industries.

2. Three Essential Capabilities of a Specialized Crystal Oscillator Supplier

To meet the diverse needs above, a supplier must demonstrate these three core competencies:

3. Success Story: Fronter Electronics Solves a Critical Automotive Timing Challenge

Customer Profile: A leading European automotive Tier-1 supplier developing a next-generation ADAS radar module needed a High stability oscillator with ±0.5 ppm frequency stability from -40°C to +105°C, while maintaining a 4-pin SMD footprint (7.0×5.0mm) and drawing < 10 mW at 3.3V.

Challenge: Commercial off-the-shelf TCXO oscillators could not meet the combined requirements of extreme temperature range and low power. The customer’s previous supplier had a lead time of 16 weeks and no customization support.

Fronter Solution: The Fronter engineering team developed a custom VCTCXO variant (FT-VTX7050 series) using a proprietary compensation algorithm. Key results:

• ✅ Frequency stability better than ±0.3 ppm across -40°C to +105°C
• ✅ Phase noise performance: -155 dBc/Hz @ 10 kHz (10 MHz carrier)
• ✅ Lead time reduced to 4 weeks with sample delivery in 10 working days
• ✅ Full RoHS compliance and REACH conformity guaranteed

As a result, the customer achieved first-pass qualification and reduced their BOM cost by 18% compared to their previous sourcing strategy. The project entered mass production within six months of initial contact.

4. Cooperation Recommendations for Procurement Professionals

To maximize the likelihood of a successful partnership, follow these best practices when engaging with a Quartz crystal oscillator supplier:

• Define Industry Standards Explicitly: Specify which standards your product must meet (e.g., AEC-Q200 for automotive, GR-1244-CORE for telecom, MIL-PRF-55310 for defense). Ask the supplier for documented test data and certificates.
• Conduct On-Site or Remote Audit: Evaluate the supplier’s manufacturing capabilities—automated equipment (Fronter operates robotic assembly lines and big data centers for real-time quality monitoring), cleanliness levels, and ESD controls.
• Request Application-Specific Samples: Before committing to mass production, request pre-production samples for your actual working condition (temperature cycling, vibration profile). Fronter offers fast prototyping (3–5 days for Programmable oscillator variants).
• Negotiate Emergency Support Clauses: Include in your contract a 24/7 technical support channel, replacement guarantee for DOA units, and expedited delivery (Fronter’s sales team provides WhatsApp (+86 18903022818) and email support with 8-hour response).
